587Ah vs 684Ah Large‑Capacity Cells Which One Is Better for Your Energy Storage Project?

As demand for large‑scale commercial & industrial energy storage and container‑based energy storage stations keeps increasing, large‑capacity energy storage cells have become a key focus for many EPC integrators and overseas energy‑storage project customers. Both 587Ah and 684Ah large‑capacity cells are frequently compared in the market. Many clients wonder: which is better, 587Ah or 684Ah cell? There is no absolute winner. Selection should be based on project site conditions, container cabinet type, budget, cycle life and thermal management working conditions.

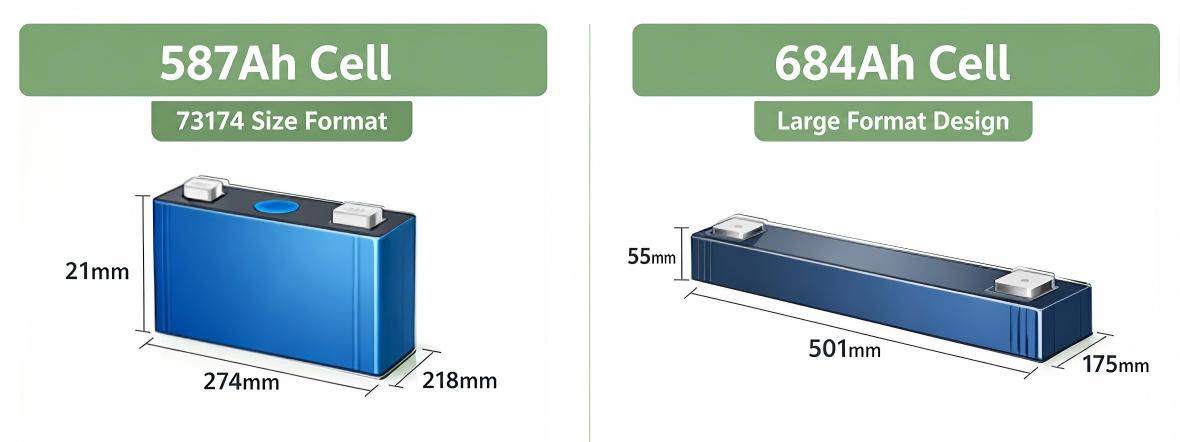

1. 587Ah VS 684Ah Large‑Capacity Cells

587Ah Cell: A well‑proven large‑capacity option with abundant real‑world project references globally. It is widely compatible with mainstream 20ft and 40ft liquid‑cooled outdoor energy‑storage cabinets and has enjoyed high‑volume mass production.

684Ah Cell: Next‑generation ultra‑large‑capacity cell. Its higher per‑cell capacity reduces total cell quantity within an commercial and industrial energy‑storage system. Fewer cells mean fewer BMS management nodes, wiring harnesses and connecting components, which theoretically cuts down system integration costs. Nevertheless, buyers should not judge purely by capacity figures. Larger‑Ah cells bring increased unit weight and higher thermal‑management pressure — critical factors for project selection.

Basic Parameters:

Manufacturer	CATL	Sunwonda
Normal Capacity(Ah)	587	684
Normal Voltage(V)	3.2	3.2
Cell Type	Lithium Iron Phosphate (LFP) Prismatic Cell	Lithium Iron Phosphate (LFP) Prismatic Cell
Manufacturing Process	Winding process	Lamination process
Normal Energy(Wh)	1878.4	2188.8
Volumetric Energy Density (Wh/L)	434	440
Gravimetric Energy Density (Wh/kg)	185	192
Standard/Maximum Charge-Discharge Rate	0.5P	0.25P
Single Container Energy	Standard 20ft container around 6.5MWh	Standard 20ft container 6.8-6.9MWh
Cycle Life (25℃, 0.5P/0.5P)	≥6000 cycles (80% SOH) ≥10000 cycles (70% SOH) ≥12000 cycles (60% SOH)	≥6000 cycles (80% SOH) ≥9000 cycles (70% SOH) ≥12000 cycles (60% SOH)
Charge-Discharge Efficiency (RTE)	Initial ≥96.5%, slow attenuation over full lifecycle	System-level ≥94.5%

2: Advantages of Each Cell Under Real‑World Project Conditions

1) 587Ah Cell: Mature & Reliable for Most Overseas Energy‑Storage Projects

The 587Ah large‑capacity cell has been validated in numerous overseas deployments and proven in mass‑market applications.

a. Controllable heat dissipation & temperature performance
With moderate single‑cell capacity, it achieves balanced cell temperature easily within liquid‑cooled container energy‑storage systems. The BMS faces lighter pressure for SOC balancing and mitigates potential thermal runaway risks. It fits harsh working scenarios such as off‑grid island energy storage and grid peak‑shaving with frequent full charge‑discharge cycles.

b. Stable supply‑chain & lead time
Benefiting from mature mass‑production processes, 587Ah cells show consistent cell‑to‑cell uniformity. For foreign‑trade orders, lead times are predictable for full container shipments. It remains the preferred choice for many overseas system integrators.

c. Compatibility with existing integration solutions
Most liquid‑cooled energy‑storage cabinets and outdoor enclosures are originally engineered for 587Ah cells. No cabinet re‑tooling or structural modification is required. System integration can be completed directly to shorten R&D and testing cycles and accelerate project execution. Suitable scenarios: C&I energy storage, off‑grid mine energy storage, island energy storage. Ideal for overseas projects prioritizing proven reliability and field‑verified references.

2) 684Ah Cell: High Capacity to Lower BOM Costs

The core merit of the 684Ah ultra‑large‑capacity cell lies in its higher single‑unit capacity. For an energy‑storage system of given MWh output, fewer cells are needed, together with reduced high‑voltage wiring, copper busbars and BMS acquisition channels, bringing theoretical BOM cost savings.
However, objective constraints apply to 684Ah cells: Larger dimension and weight demand upgraded cabinet structures and redesigned liquid‑cooling flow channels. Legacy energy‑storage cabinets cannot support direct retrofitting. Large‑scale real‑world deployments are fewer compared to 587Ah. Sufficient charge‑discharge and thermal simulation validation is required in the pre‑project phase.

Suitable scenarios: New‑build utility‑scale ground‑mounted energy‑storage stations, where maximum cabinet energy density is pursued. Cabinet structural adaptation and system verification work should be budgeted for.

Key Selection Criteria — Look Beyond Ah Rating

Many overseas buyers focus merely on Ah value when sourcing large‑capacity cells. For real‑world energy‑storage projects, several dimensions matter more than nominal capacity.

1) Thermal‑management matching: Large‑capacity cells heavily rely on liquid‑cooling systems. Whether you choose 587Ah or 684Ah, confirm the liquid‑cooling solution can keep cell temperature difference within specification. Excessive temperature gap accelerates cell degradation and shortens the whole‑system service life.

2) Cell consistency: Large‑capacity cells set high barriers for manufacturing quality. Uniformity in cell voltage and internal resistance determines usable capacity of the whole cabinet. Poor consistency creates “barrel‑effect” bottlenecks that prevent the system from reaching its nameplate capacity.

3) Project constraints: cabinet type, transportation & installation: Standard off‑the‑shelf container energy‑storage solutions favour 587Ah compatibility. For green‑field projects, evaluate the density benefits of 684Ah while calculating extra costs for cabinet modification and validation testing.

4) Supply‑chain & after‑sales support: Warranty terms, overseas spare‑part availability and complete test reports are essential prerequisites for foreign‑trade energy‑storage procurement.

Conclusion: How to Choose Between 587Ah and 684Ah Cells

Back to the original question: which cell performs better, 587Ah or 684Ah? There is no universally superior cell — only the most suitable one for your specific project.

If you work on standardised container‑based energy‑storage, off‑grid island or commercial‑industrial projects and prioritise proven stability and minimised integration risks, 587Ah large‑capacity cells are recommended. Supported by rich overseas field references, stable supply‑chain and native compatibility with mainstream liquid‑cooled cabinets.

If you develop brand‑new utility‑scale ground‑mounted stations, are prepared for custom liquid‑cooled cabinet redesign, target higher cabinet‑level energy density and can complete full‑set system simulation plus charge‑discharge verification, 684Ah cells are a viable alternative to capture integration‑BOM cost advantages.

In energy‑storage foreign‑trade projects, do not blindly chase higher Ah figures. Make comprehensive judgements covering cabinet solution, operating conditions, budget and supply‑chain lead time, to guarantee long‑term stable operation of your energy‑storage power station.

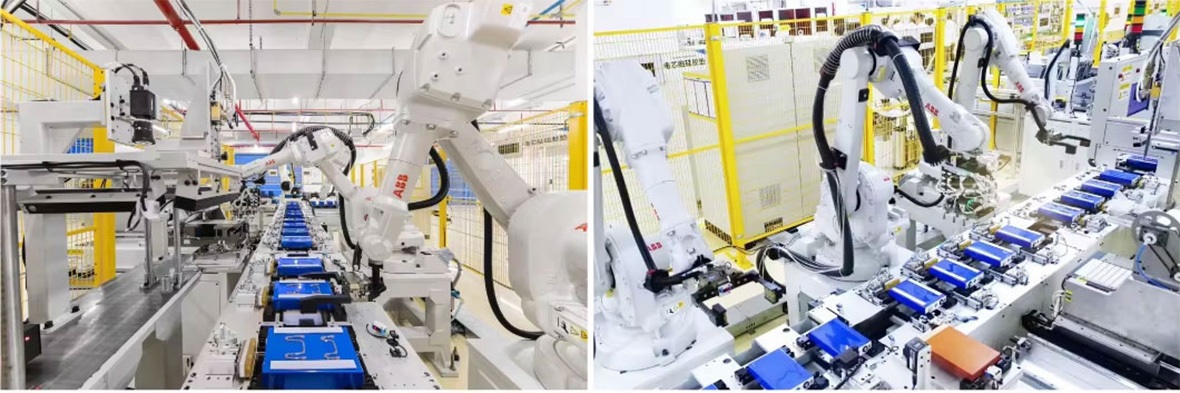

China Lithium Battery Export Tax Rebate to End in 2027 How Should Buyers Plan?

China's lithium battery industry is facing an important policy change. From January 1, 2027, the export tax rebate for battery products will be cancelled. The rebate rate has already been reduced from 9% to 6% as of April 1, 2026.

For overseas buyers of lithium batteries and energy storage systems, this change could lead to increased procurement activity during the second half of 2026.

40FT Container Energy Storage System

When Could the Shipping Peak Come?

We expect procurement activity to increase gradually from August to September 2026, as some buyers may bring forward their purchasing plans.

However, the more significant shipping peak could occur in November and December 2026.

Customers originally planning to purchase batteries in early 2027 may choose to move their orders forward and complete production and export before the end of 2026.

This could create additional pressure on:

* Battery cell supply

* Factory production capacity

* BMS and PCS availability

* Container production

* Shipping and customs clearance

Therefore, waiting until December to place an order could increase both delivery and logistics risks.

How Should Overseas Buyers Plan Procurement?

For projects already confirmed, we recommend starting procurement planning 3–6 months in advance.

1. Confirm demand early

Estimate your battery and BESS requirements for the next 6–12 months, including projects that are highly likely to proceed.

2. Finalize technical specifications

Confirm key parameters such as:

* Battery capacity

* Cell type and brand

* BMS

* PCS

* Cooling system

* Fire protection

* Certifications

This allows suppliers to reserve production capacity in advance.

3. Reserve capacity instead of overstocking

Buyers do not necessarily need to purchase a large amount of finished batteries immediately.

A better approach is: Reserve production capacity → Schedule production → Ship in batches

This provides greater flexibility while reducing inventory pressure.

4. Arrange logistics early

For large BESS projects, production is only one part of the schedule. Shipping, dangerous goods requirements, UN38.3, MSDS, customs clearance and vessel availability should also be considered in advance.

Container Energy Storage System

Don't Wait Until the Last Month.

The cancellation of the export tax rebate does not automatically mean that battery prices will increase by the same percentage. Battery prices are also influenced by cell costs, raw materials, supply and demand, freight rates, and market competition.

Therefore, the goal should not be to blindly stockpile batteries.

The key is to secure reliable suppliers and production capacity before the year-end rush.

For overseas energy storage projects, especially 500kWh, 1MWh, 2MWh and larger BESS systems, early planning can help reduce delivery risks and ensure a smoother project schedule.

Final Takeaway

August–September 2026: Start supplier selection and demand forecasting.

October–November 2026: Confirm orders and reserve production capacity.

November–December 2026: Expect stronger shipping activity and potential logistics pressure.

For buyers planning to source lithium batteries or BESS systems from China, early procurement planning may be more valuable than simply chasing the lowest price.

Plan early. Secure capacity. Ship strategically.

How to Select DC Coupling & AC Coupling in Solar Energy Storage System?

Against the backdrop of today's energy transition, photovoltaic energy storage systems are becoming a vital component of sustainable energy development due to their unique advantages. The coupling method of solar and storage serves as the pivotal link in achieving efficient energy utilization.

Today, Sailsolar will help you explore a crucial concept between two coupling architectures in solar power system: DC coupling and AC coupling in solar-storage systems.The key to understanding these two architectures lies in identifying where the energy from photovoltaics and the storage battery converges.

DC coupling: Circuit of PV and the storage battery converge on the DC side.

AC coupling: Circuit of PV and storage battery will converge on the AC side.

1. DC Coupling Architecture

In DC-coupled architecture, DC power from the PV array is stabilized by the DC-DC converter within a hybrid inverter (solar-storage inverter) and fed directly into the battery.

When power is needed, it can be drawn from either the PV array or the battery. In either case, the DC power is converted to AC by the DC-AC module within a hybrid inverter before being supplied to the loads.

Key Point: The energy remains entirely in DC form when charging the battery from the PV array, avoiding any lossy DC-AC-DC conversion.

2. AC Coupling Architecture

In AC-coupled architecture, the PV and energy storage systems operate relatively independently. The DC power generated by the PV array is first converted to AC via a PV inverter, which then supplies the grid or local loads directly.

If AC power which convertered by solar inverter needs to be stored, it must be processed by a PCS (Power Conversion System), which converts it back to DC to charge the battery. When discharging, the PCS again converts the battery‘s DC power to AC for use by the loads.

Key Point: Charging the battery from the PV array requires a DC → AC → DC conversion process, and powering the loads adds a further DC → AC conversion.

3. Comparison for Both Architecture

(1) Energy Flow Path & Conversion Steps

DC Coupling: DC power generated by the PV modules can charge the battery directly (DC-DC), without undergoing DC-AC-DC conversion, resulting in lower energy losses.

AC Coupling: Storing PV power requires a two-step conversion (DC-AC-DC). When finally used, the power undergoes a total of three conversion steps, leading to relatively higher energy losses.

(2) System Equipment & Cost

DC Coupling: Utilizes an integrated hybrid inverter (or solar-storage inverter), which combines PV MPPT, bidirectional conversion, and battery management. This reduces the number of required components and interconnection cabling, lowering the initial investment. Fewer components also mean reduced installation and maintenance costs.

AC Coupling: Requires separate solar inverters and a battery inverter (PCS), along with a corresponding AC distribution board. The greater number of components increases cabling costs and requires more installation space.

(3) DC-to-AC Ratio (Inverter Loading Ratio)

Assuming a factory transformer capacity of 2.5MVA, the total inverter output is typically limited to 80% of that capacity (approx. 2MW) for safe operation.

DC Coupling: Can support a 4MWp PV array. If the PV array generates 4MW of power, 2MW can flow directly to the battery for charging via the DC bus (a DC-DC process).

The remaining 2MW is converted by the PCS within the hybrid inverter and output as 2MW of AC power. The stored green energy can be dispatched during evening peak hours, maximizing the utilization of solar generation to meet higher corporate demand for renewable energy.

AC Coupling: PV generation is primarily limited by the PV inverter's capacity. With a 1.3 DC-to-AC ratio, a 2.6MWp PV array might be installed. If it generates 2.3MW DC, the 2MW AC PV inverter would constrain the output, causing the system to curtail PV generation and resulting in wasted solar energy.

(4) System Compatibility & Scalability

DC Coupling: Features high integration between the PV and storage systems. However, it has poor compatibility for retrofitting existing PV systems, often requiring replacement of the original inverter. System expansion is also constrained by the hybrid inverter's maximum input/output power and battery port specifications.

AC Coupling: Offers easy retrofitting for existing PV systems, as storage can be added by paralleling a battery inverter and batteries on the AC side. It allows flexible selection of equipment from different brands and provides stronger scalability.

4. How to Select AC&DC Coupling Solution

(1) DC Coupling:Scenarios such as new solar-storage system construction, pursuit of higher conversion efficiency and DC-to-AC ratio, and where installation space is somewhat limited.

(2) AC Coupling:Scenarios such as adding energy storage to existing PV systems, requiring compatibility with equipment from multiple brands, and hybrid integration of multiple energy sources.

Each method has its trade-offs, with no single optimal choice for all scenarios. The practical selection must be based on a comprehensive evaluation of the project's specific conditions and requirements. As both technologies continue to advance, they promise to deliver an ever-widening array of solutions, empowering users to make the optimal choice for their unique energy future.

Liquid Cooling vs Air Cooling for ESS Energy Storage System High-Rate Performance vs Low-Cost Solutions

In industrial and commercial energy storage systems, the choice of temperature control solution for battery storage cabinets plays a decisive role in the safety, economic efficiency, and service life of the entire system. As the two mainstream thermal management technologies, air cooling and liquid cooling each have their own advantages and limitations. Only through comprehensive evaluation across multiple dimensions—including technical characteristics, economic costs, and environmental adaptability—can the most suitable solution be determined.

1. Comparison of Core Technical Characteristics

1.1 Heat Dissipation Efficiency and Temperature Control

Air cooling systems dissipate heat by driving air circulation through fans. Since air has a thermal conductivity of only 0.026 W/(m·K), its heat transfer efficiency is relatively low. In actual operation, the cell temperature difference of air-cooled energy storage cabinets is generally in the range of 5–8 °C.

This temperature control method is suitable for scenarios with power density ≤ 1C and average daily charge-discharge cycles ≤ 2, such as peak-valley arbitrage projects in industrial parks. In such applications, requirements for heat dissipation efficiency are not stringent, and air cooling systems are fully sufficient.

Liquid cooling systems use coolants such as 50% ethylene glycol aqueous solution as the heat transfer medium, with a thermal conductivity as high as 0.58 W/(m·K), providing far superior heat dissipation performance compared to air cooling. With liquid cooling technology, the cell temperature difference can be precisely controlled within 3 °C.

Under high-rate charge-discharge conditions (above 3C), batteries generate a large amount of heat, which liquid cooling systems can quickly remove. Liquid cooling also performs excellently in extreme high-temperature environments above 40 °C, with desert photovoltaic plus energy storage projects as typical examples.

1.2 System Complexity and Maintenance Costs

Air cooling systems feature a relatively simple structure, mainly consisting of fans and air ducts, resulting in a lower initial investment cost of approximately 0.499 RMB/Wh. However, since air carries dust, filters need to be cleaned quarterly to maintain effective heat dissipation, leading to long-term O&M costs of around 0.02–0.05 RMB/Wh per year.

Liquid cooling systems require the integration of many components such as cold plates, pumps, valves, and heat exchangers, with initial costs 15%–20% higher than air cooling. Nevertheless, liquid cooling systems demand less frequent maintenance, with only one coolant inspection required annually. From a full life cycle perspective, costs for liquid cooling systems can be reduced by 10%–15%.

1.3 Space Occupancy and Environmental Adaptability

Air cooling systems do not require additional piping, allowing the energy storage cabinet volume to be reduced by 10%–15%. This gives air cooling a significant advantage in space-constrained industrial and commercial rooftop scenarios.

Liquid cooling systems have higher space requirements due to the need for coolant circulation channels. However, in harsh environments such as high-humidity coastal areas and dusty mines, liquid cooling systems ensure stable operation with a high protection rating of IP65.

2.Conclusion

For projects with power density ≤ 1C, limited budgets, and mild environmental conditions — such as typical industrial and commercial parks — air cooling is the preferred option. For applications involving high-rate charging and discharging, high-temperature or high-humidity environments, or from a long-term investment perspective (e.g., data centers and ports), liquid cooling is more suitable.

In addition, a hybrid solution of liquid-cooled PACK + air-cooled PCS can be adopted to balance heat dissipation efficiency and cost. In actual decision-making, it is recommended to combine specific project parameters, conduct economic modeling, and compare technical solutions from manufacturers to select the most appropriate thermal management scheme.

Solar Energy Storage Systems — How to Make Your Lithium Batteries Last Longer

"How to maintain and extend the lifespan of lithium batteries in a solar system"—is this something you've always been concerned about? Lithium battery maintenance requires consideration of many factors, such as charge/discharge management, environmental control, system compatibility, and daily monitoring. Below is a system maintenance guide:

1. Core Principles: Avoid "Three Highs and Two Lows"

Three Highs: High-rate charge/discharge, high/low temperature environments, and long-term storage at high capacity (100% SOC).

Two Lows: Over-discharge (low SOC), and low-temperature charging (below 0°C).

2.Charge and Discharge Management (The Most Critical Aspect)

(1) Avoid Over-Discharge

Set a reasonable discharge cutoff voltage (e.g., the voltage of a single lithium iron phosphate cell should not be lower than 2.5V). The system needs to be equipped with a BMS for protection.

It is recommended to maintain the battery level between 20% and 90% during daily use to avoid prolonged periods of low charge.

(2) Optimize Charging Strategy

Use multi-stage charging (constant current-constant voltage-float charging) to avoid prolonged high-voltage float charging.

Control the charging current between 0.2C and 0.5C (e.g., charge a 100Ah battery with 20A~50A) to reduce high-current surges.

Avoid low-temperature charging: Charging below 0°C can easily lead to lithium deposition, requiring regulation through a BMS or heating system.

(3) Shallow Charge and Discharge

Controlling the battery's depth of cycle (DOD) to below 70%~80% can significantly extend cycle life (e.g., using only 50% of the battery level per day may more than double the lifespan compared to using it at 100%).

3.Environment and Installation & Maintenance

(1) Temperature Control

Ideal Temperature: 15°C~25°C (Optimal charging/discharging range).

(2) High Temperature Protection:

Avoid direct sunlight; ensure proper ventilation in the battery compartment.

When the ambient temperature is >35°C, consider active cooling (fan/air conditioning).

(3) Low Temperature Protection:

Stop charging below 0°C; if necessary, install insulation or a self-heating BMS.

In extremely cold regions, consider underground insulated boxes or indoor installation.

(4) Installation and Connection

Keep the battery pack dry and clean, avoiding dust or corrosive gases.

Regularly check the tightness of cable connections to prevent poor contact leading to localized overheating.

When using batteries in parallel, select batteries of the same model and batch to ensure consistent internal resistance.

4.System Co-optimization

(1) The Importance of BMS (Battery Management System)

Individual cell voltage/temperature monitoring

Overcharge, over-discharge, overcurrent, and short-circuit protection

Temperature balancing function (active balancing is preferred)

Regularly check cell consistency via the BMS; if the voltage difference is >50mV, investigate the cause.

(2) Load Management

Avoid sudden high-power loads (such as motor starting); a soft starter can be installed.

Power design should include a margin to prevent prolonged high-rate discharge.

5.Daily Monitoring and Maintenance

(1) Regular Inspections

Monthly inspections of battery appearance (bulging, leakage), temperature, and connection terminals.

Quarterly capacity degradation analysis using BMS data (capacity tester available).

Annual professional testing: internal resistance test, equalization maintenance.

(2) Long-Term Storage Recommendations

If the system is not used for an extended period, maintain the battery charge at 40%~60% (half-charge state).

Disconnect the battery from the system and perform a top-up charge maintenance every 3 months.

Through the above measures, the key to maintaining and extending the lifespan of lithium batteries in solar energy systems lies in prevention rather than remediation. Keeping the batteries operating in their "comfort zone" is the most cost-effective maintenance method.

The Core of Modern Energy Transition — How BESS Enhances Solar Power Systems

Introduction

As renewable energy adoption accelerates worldwide, solar power has become one of the most efficient and sustainable energy sources. Yet, its intermittent generation poses challenges for grid stability and energy management. This is where Battery Energy Storage Systems (BESS) play a vital role.

A well-designed solar energy storage system transforms renewable power into a controllable, stable, and efficient energy supply — enabling industries and businesses to achieve energy independence and long-term sustainability.1. What Is a Battery Energy Storage System (BESS)?

A Battery Energy Storage System (BESS) is an integrated technology that stores electricity from renewable sources such as solar and wind, then releases it when needed. It typically consists of:

LiFePO₄ battery modules with high energy density and safety;
A Battery Management System (BMS) for real-time monitoring and protection;
A Power Conversion System (PCS) for bidirectional energy flow;
An Energy Management System (EMS) for intelligent control and scheduling.

Together, these components ensure seamless energy conversion and optimize performance in hybrid solar and off-grid systems.

Grid Support and Peak Shaving: BESS stabilizes power output and balances grid fluctuations.
Energy Independence: Stores excess solar energy during the day for use at night, reducing dependence on the utility grid.
System Efficiency Optimization: Prevents energy waste through intelligent load management and discharge scheduling.
Backup Power Function: Provides reliable backup during power outages for industrial and commercial users.
Modular Scalability: Flexible design allows easy capacity expansion for larger energy storage projects.

3. SAIL SOLAR — A Trusted BESS Manufacturer and Solution Provider

SAIL SOLAR Energy Co., Ltd is a professional BESS manufacturer and LiFePO₄ battery supplier in China, focusing on high-voltage lithium battery systems for industrial and commercial energy storage.
Our advanced products, such as the 358V 280Ah High-Voltage LiFePO₄ Battery, are engineered with precision and quality to deliver high efficiency, long cycle life, and superior safety.
Each system integrates intelligent BMS protection, smart communication (RS485/CAN), and compatibility with mainstream PCS and EMS platforms — making SAIL SOLAR a reliable partner for solar energy storage system integrators and EPC companies worldwide.

4. The Future of Energy Storage Technology

With the rapid growth of renewable energy, battery energy storage systems are becoming the backbone of modern smart grids.
Future BESS technologies will focus on higher voltage platforms, better thermal management, and smarter software integration.
At SAIL SOLAR, we continue to invest in energy storage R&D, offering scalable and sustainable lithium battery solutions that empower global customers to achieve net-zero carbon goals.

Conclusion

By integrating solar power systems with advanced BESS technology, SAIL SOLAR delivers reliable, efficient, and future-ready energy storage solutions.
As a professional energy storage system manufacturer, we are dedicated to enabling customers to harness clean power with confidence — building a smarter, greener, and more sustainable world.

Why Modern Site Operations Increasingly Rely on Intelligent Battery Chargers

In the past, a battery charger was considered a simple power conversion device: AC in, DC out, and charge the battery. That was enough.

Today, however, applications such as telecom power systems, substations, industrial facilities, and energy storage systems have fundamentally changed the expectations for charging equipment. Users no longer focus only on whether the system runs—they want visibility, controllability, and intelligence.

This is where the role of the intelligent battery charger becomes critical.

From “Power Supply” to “Visible System Node”

Traditional chargers only performed one task: stable DC output. But modern site operation demands much more:

· Can the system status be monitored remotely?

· Can faults be located quickly?

· Can parameters be adjusted without onsite intervention?

One of the biggest challenges in field operation is not alarms themselves, but unclear alarm information. For example, conditions such as:

· Battery undervoltage

· Output overcurrent

· Module overtemperature

· AC input phase loss

· Communication failure

If the monitoring system only shows a general fault code, maintenance engineers must go onsite and troubleshoot step by step. This increases downtime and operational cost significantly.

A modern smart DC charger solves this problem by providing detailed real-time data, including:

· Input voltage and phase status

· Output voltage and current

· Charging mode (float/equalize)

· Module temperature

· Detailed alarm logs and status records

This allows operators to understand the system condition first, then make informed maintenance decisions.

Remote Monitoring Enables Multi-Site Management Efficiency

For operators managing multiple sites, especially telecom networks or distributed industrial systems, efficiency is a key challenge. A project may include tens or even hundreds of power stations.

Without centralized monitoring, regular inspection becomes:

· Time-consuming

· Labor-intensive

· Inefficient for early fault detection

By integrating a remote monitoring battery charger into SCADA systems, EMS platforms, or DC power monitoring systems, all site data can be viewed centrally.

This enables:

· Real-time equipment status visualization

· Instant alarm notifications

· Historical data analysis for failure diagnosis

As a result, operators can shift from reactive maintenance to proactive system management.

Parameter Flexibility Improves System Adaptability

Different battery technologies and application environments require different charging strategies.

For example:

· Float voltage and equalize voltage vary by battery type

· Current limits depend on system capacity

· Alarm thresholds must match operational risk levels

If all projects use fixed factory parameters, system performance will be inconsistent and maintenance flexibility will be limited.

A modern industrial battery charger monitoring system should support:

· Adjustable charging parameters

· Customizable control strategies

· Field-based optimization

· Software-based configuration updates

This flexibility ensures better compatibility with real-world operating conditions and simplifies long-term maintenance and upgrades.

Intelligence Requires More Than Communication

Adding a communication port alone does not make a charger intelligent.

True intelligence requires:

· Accurate communication protocol design

· Well-defined data mapping points

· Consistency between on-site status and platform display

· Logical alarm handling and recovery mechanisms

If the backend system shows data that does not match actual equipment behavior, operators may lose trust in the monitoring system. Instead of improving efficiency, it can increase confusion and communication overhead.

A well-designed smart DC charger system ensures that what is displayed remotely accurately reflects what is happening on-site.

From Power Equipment to Operational Intelligence Node

The role of the charger is evolving.

It is no longer just a DC power source. It has become an essential node in the entire operation and maintenance ecosystem, responsible for:

· Stable power output

· System status feedback

· Fault recording and reporting

· Platform integration and coordination

For project owners, selecting an intelligent solution improves not just equipment performance, but overall system visibility and operational efficiency.

From Reactive Repair to Predictive Maintenance

One of the most valuable benefits of intelligent charging systems is the shift from reactive maintenance to predictive maintenance.

By analyzing trends in:

· Voltage

· Current

· Temperature

· Alarm history

Operators can identify early warning signs such as:

· Fan aging

· Abnormal temperature rise

· Extended charging time of batteries

· Gradual performance degradation

These issues can be addressed before they escalate into system failures or downtime.

This is the true value of intelligent battery charger technology—not just monitoring, but prevention.

Conclusion

As power systems become more complex and distributed, intelligent charging solutions are no longer optional—they are essential.

Modern smart DC chargers transform traditional power equipment into data-driven, remotely manageable, and predictive maintenance-enabled system components.

For operators and system integrators, this means higher reliability, lower maintenance cost, and significantly improved operational efficiency across the entire power network.

About EverExceed

A Global Leading Manufacturer of Customized AC/DC Power Solutions

20+ Years of Battery Manufacturing Experience

10+ years System Integration Experience

A new track emerges highways enter the electricity market trading.

Can you imagine that highways are now participating in the electricity and ancillary services markets?

On May 19th, Shaanxi Transportation Holding Group successfully obtained official provincial-level access qualifications for virtual power plant business, acquiring full qualifications for load dispatching, distributed energy aggregation and management, and power resource optimization, entering a new stage of dual-engine development of electricity sales and virtual power plant operation.

Not only Shaanxi, but also Shandong, Yunnan, Zhejiang, Guangdong, and other provinces are following suit.

So, the widespread deployment of "transportation + energy" integration in multiple regions inevitably raises questions: is this a strategic move to capitalize on the trend, or simply a change of name to ride the wave?

1. Widespread Development: Highway Virtual Power Plants Usher in a Wave of Implementation

First, it's important to understand why companies operating highways would participate in electricity trading.

In the past, the installation of photovoltaic projects, energy storage power stations, and charging piles along highways was primarily for self-consumption, driven by energy conservation and carbon reduction considerations.

However, the emergence of virtual power plants has rewritten this logic. Essentially, it's a digital dispatch system that aggregates resources such as photovoltaic power, energy storage, charging piles, and adjustable loads scattered across different nodes through communication technology and a software platform. This allows for unified control and participation in the electricity market as a whole.

The revenue boost that virtual power plants bring to highways after operation is tangible, as demonstrated by Shandong Expressway Group.

At the end of 2025, the virtual power plant built by Shandong Expressway Group's Energy Development Company was successfully registered and became the first power generation virtual power plant in the highway sector in China.

The project selected three photovoltaic-energy storage sites along the route with large energy storage capacity and good regulation capabilities, totaling 11.07MW. Through a self-developed edge intelligent controller and management platform, it achieves aggregated dispatch of dispersed resources, solving the problem of idle and wasted photovoltaic power while generating revenue through electricity price differences and grid services, truly making idle roadside resources valuable.

It is estimated that the virtual power plant can generate approximately 3.02 million yuan in annual revenue after operation. In 2025, Shandong Hi-Speed Group traded 465,000 green certificates, generating 81.136 million yuan in green electricity revenue—almost zero in previous accounts for the expressway industry.

Following Shandong, Yunnan is also accelerating its development. In early 2026, Yunnan Transportation Investment Group's virtual power plant received provincial official certification, aggregating 136 users and achieving a measured regulation capacity of 2.97MW.

This project leverages abundant local solar resources, integrating distributed photovoltaic power, energy storage devices, and charging networks along the expressway. It aligns with the regional energy pattern of "West-to-East Power Transmission," ensuring local grid load stability while enabling local production and use of green electricity, precisely meeting the unique energy development needs of Southwest China.

In addition, pilot projects for virtual power plants along expressways in the Yangtze River Delta and Pearl River Delta regions are more focused on intelligence and diversification.

Zhejiang has integrated a virtual power plant dispatch system into its Hangzhou-Shaoxing-Ningbo smart expressway, combining energy management with smart transportation and autonomous driving scenarios. Guangdong, based in the Greater Bay Area, is exploring a new model of "expressway + energy storage + vehicle-to-grid interaction." Jiangsu and Henan, leveraging their transportation hub advantages, are revitalizing service area electricity and charging resources to participate in regional power grid load regulation.

Different regions are adapting to local conditions, making the development pattern of expressway virtual power plants increasingly complete.

2. Inherent Advantages: Expressways are More Suitable for Virtual Power Plants

With the deepening of power market reforms, the concept of virtual power plants is gradually becoming more widespread. Industrial parks and high-energy-consuming factories are implementing them. So, what advantages do expressways have to gain a share of the market?

First, they have a high concentration of resources, which is difficult for industrial parks and factories to replicate. Industrial parks often involve multiple enterprises with significantly different electricity usage times and loads, resulting in dispersed resources and difficulties in overall coordination. While factories have stable adjustable loads, their scale is limited and they are primarily driven by electricity load, making it difficult to form a complete energy operation loop.

Highways, however, are different. They traverse the entire region, and the rooftops of service areas, roadside slopes, and open spaces along ramps all provide excellent sites for photovoltaic (PV) installations. Simultaneously, the lighting and ventilation equipment at toll stations, tunnels, and service areas create stable and controllable power loads. Combined with the widespread charging piles and energy storage devices along the road network, highway resources are more concentrated, larger in scale, and more stable. With unified ownership, they are more suitable for centralized dispatch and operation.

In terms of actual installed capacity, Shandong Expressway Group has already built over 806,000 kilowatts of roadside PV, ranking first in the national transportation industry; Shaanxi Transportation Holding Group has already built over 133 MW of roadside PV installed capacity, with a second-phase plan for 240 MW of PV installed capacity, and a concurrent plan for approximately 56 MW/111 MWh energy storage projects. The group's annual electricity consumption is close to 1 billion kilowatt-hours, indicating a huge potential for flexibly allocated power resources.

Furthermore, the dispatching scope and coverage of virtual power plants on highways are larger. Roadside energy storage and adjustable loads are proactively released during peak grid periods and absorb excess power during off-peak periods, directly participating in peak shaving and valley filling of the regional power grid. In the event of extreme weather or grid failures, the energy storage and power generation equipment of the highway network can act as emergency power sources, ensuring the normal operation of service areas, tunnels, and toll stations is not disrupted by external power outages.

3. The greater the market potential, the greater the challenges.

While pilot projects of cross-border virtual power plants on highways in various regions have yielded significant results, achieving stable commercial operation from scattered pilot projects still faces considerable challenges.

Firstly, resource dispatching and management present high technical difficulties. While highways have a concentrated overall resource volume and unified ownership, various energy facilities are linearly distributed along the road network, with numerous service areas, tunnels, toll stations, and roadside photovoltaic and energy storage sites spanning a large spatial area.

Connecting all massive independent nodes to a unified dispatching platform to achieve real-time data acquisition and minute-level load response places stringent requirements on hardware reliability, communication link quality, and intelligent dispatching algorithms.

The wider the coverage area and the more complex the on-site conditions, the greater the difficulty in system coordination. The entire dispatching platform not only requires stable hardware support but also demands algorithms with good adaptability and fault tolerance.

Secondly, the availability of energy storage brings dual constraints on investment and profitability. Energy storage is crucial for virtual power plants to achieve load regulation and smooth power generation fluctuations. Without sufficient energy storage, the photovoltaic power in the road area cannot be fully utilized, and peak loads at charging stations cannot be effectively staggered, thus hindering the project's adjustable capabilities.

However, energy storage projects have high initial investment costs and long overall payback periods. Furthermore, the electricity spot market and ancillary service market mechanisms in many parts of China are still under development, resulting in significant price fluctuations and making it difficult to guarantee the stability of returns on energy storage assets.

In addition, cross-industry collaboration and a lack of professional capabilities are also significant barriers. Transportation operating companies have long focused on road network management and traffic services, and generally lack experience in electricity market trading rules, bidding strategies, and risk management, resulting in insufficient professional talent reserves.

At the same time, the project involves multiple management areas such as transportation, power grid, and energy. Different areas have different regulatory requirements and procedures, and there are still many bottlenecks in inter-departmental collaboration. Conclusion

Overall, virtual power plants on highways possess a clear development logic and broad market prospects, and have received strong policy support. However, various practical challenges objectively exist, and the industry as a whole is still in the pilot and exploratory stage.

For highways, the real value of promoting virtual power plant projects lies not in earning more short-term profits through electricity trading, but in redefining roadside assets, fully revitalizing previously dormant energy resources within the road network, and opening up new space for the transformation of the transportation industry.

By 2026, China will have more than 80% of the world’s photovoltaic manufacturing capacity

Research shows that despite the introduction of local manufacturing policies in overseas markets, China will still dominate the global photovoltaic supply chain and widen the gap in technology and cost.

photovoltaic manufacturing

According to a recent research report titled "How Will China's Market Expansion Affect the Global Photovoltaic Module Supply Chain?" released by research firm Wood Mackenzie, after investing more than US$130 billion in the photovoltaic industry in 2023, China will By 2026, it will have more than 80% of the world's polysilicon, silicon wafer, photovoltaic cells and photovoltaic module manufacturing capabilities.

Huaiyan Sun, author of the study and senior consultant at Wood Mackenzie, said: “While the expansion of China’s photovoltaic manufacturing industry has been affected by falling polysilicon prices, technological upgrading and the development of local manufacturing in overseas markets, China will still dominate the global photovoltaic supply chain and Continue to widen the technology and cost gap with competitors."

According to Wood Mackenzie's annual market demand growth forecast, China's silicon wafer, photovoltaic cell and photovoltaic module production capacity is expected to exceed 1TW by 2024, which means that China's production capacity is sufficient to meet global annual demand from now to 2032.

China's capacity expansion will continue its dominant position in the global photovoltaic industry with its advanced technology, low cost and complete supply chain.

The introduction of strong policies in overseas markets has begun to strengthen local photovoltaic manufacturing, but compared with photovoltaic products supplied by China , it is still not cost-competitive. According to the research report, the price of photovoltaic modules made in China is 50% lower than that of photovoltaic modules made in Europe, and 65% lower than that of photovoltaic modules made in the United States.

Since 2022, the United States and India have announced planned PV module production capacity of more than 200GW, driven by the US Inflation Reduction Act (IRA) and India's Production-Linked Incentives Act (PLI).

Huaiyan Sun said: "Although there are considerable expansion plans for photovoltaic modules in overseas markets, overseas markets will still be unable to eliminate their dependence on China's silicon wafers and photovoltaic cells in the next three years."

N-type photovoltaic cells are the next generation technology after p-type photovoltaic cells. China plans to manufacture n-type photovoltaic cells of more than 1TW and will continue to maintain its global technology leadership. This means that China's n-type photovoltaic cell production is 17 times that of the rest of the world.

Looking beyond China, India is expected to overtake Southeast Asia as the second largest PV module production region by 2025, driven primarily by incentives under India's Production Linked Incentives Act.

Industry insiders are concerned about an oversupply in the market due to old production lines that produce less efficient photovoltaic products, such as p-type photovoltaic cells and M6 photovoltaic cells. Demand for p-type photovoltaic cells will begin to decline from 2023, and Huaiyan Sun expects that by 2026, demand for p-type photovoltaic cells will account for only 17% of supply.

NUUKO POWER has more than 10 years of experience in the photovoltaic industry and has provided high-quality and efficient 270W to 700W photovoltaic module products and customized solutions to more than 70 countries around the world.

The Advantages of the Zn-Al-Mg Ground Mounting System

When it comes to harnessing solar energy for a sustainable future, choosing the right mounting system is crucial. The Zn-Al-Mg Ground Mounting System has been gaining popularity as an efficient and reliable solution for solar panel installations.

1. Enhanced Durability:

The Zn-Al-Mg Ground Mounting System stands out due to its exceptional durability. The combination of zinc, aluminum, and magnesium alloys offers excellent corrosion resistance, ensuring the system's longevity even in harsh environmental conditions. This durability translates into long-term stability, reducing maintenance costs and increasing the lifespan of the solar installation.

2. Superior Strength:

One key advantage of the Zn-Al-Mg Ground Mounting System is its high-strength properties. The alloy composition provides exceptional structural integrity, enabling the system to withstand heavy loads, extreme weather conditions, and seismic activities. This strength factor reassures solar project developers and owners that their installations are reliably supported, ensuring peace of mind and long-term performance.

3. Easy Installation and Customization:

The Zn-Al-Mg Ground Mounting System offers easy installation and customization options. The prefabricated components come with simple assembly processes, reducing installation time and cost. Moreover, the system can be easily adjusted to fit various terrains, including uneven or sloped ground. This flexibility allows for optimized solar panel placement and maximizing energy generation potential.

4. Cost Efficiency:

Another notable advantage of the Zn-Al-Mg Ground Mounting System is its cost efficiency. The rugged durability and long lifespan of the system mitigate the need for frequent maintenance and replacements, ultimately reducing operational expenses. Additionally, the system's easy installation and customization options further contribute to cost savings in terms of labor and installation time.

5. Environmental Sustainability:

Choosing the Zn-Al-Mg Ground Mounting System aligns with environmental sustainability goals. The system's durable materials have a low environmental impact, and they can be recycled at the end of their life cycle. The integration of this system in solar energy projects promotes renewable energy initiatives while minimizing the carbon footprint associated with the mounting infrastructure.

The Zn-Al-Mg Ground Mounting System represents a significant advancement in solar panel installation technology. Its durability, strength, ease of installation, cost efficiency, and environmental sustainability make it an ideal choice for ground-mounted solar projects. Whether for commercial or residential applications, this system offers enhanced performance, reduced maintenance costs, and a long-lasting support structure for harvesting clean and renewable energy. Transitioning to the Zn-Al-Mg Ground Mounting System is a smart investment in a greener.

Zn-Al-Mg Ground Mounting System requires rails, end clamps, mid clamps, rail splice and L Feet etc. We have these accessories, please feel free to consult~
